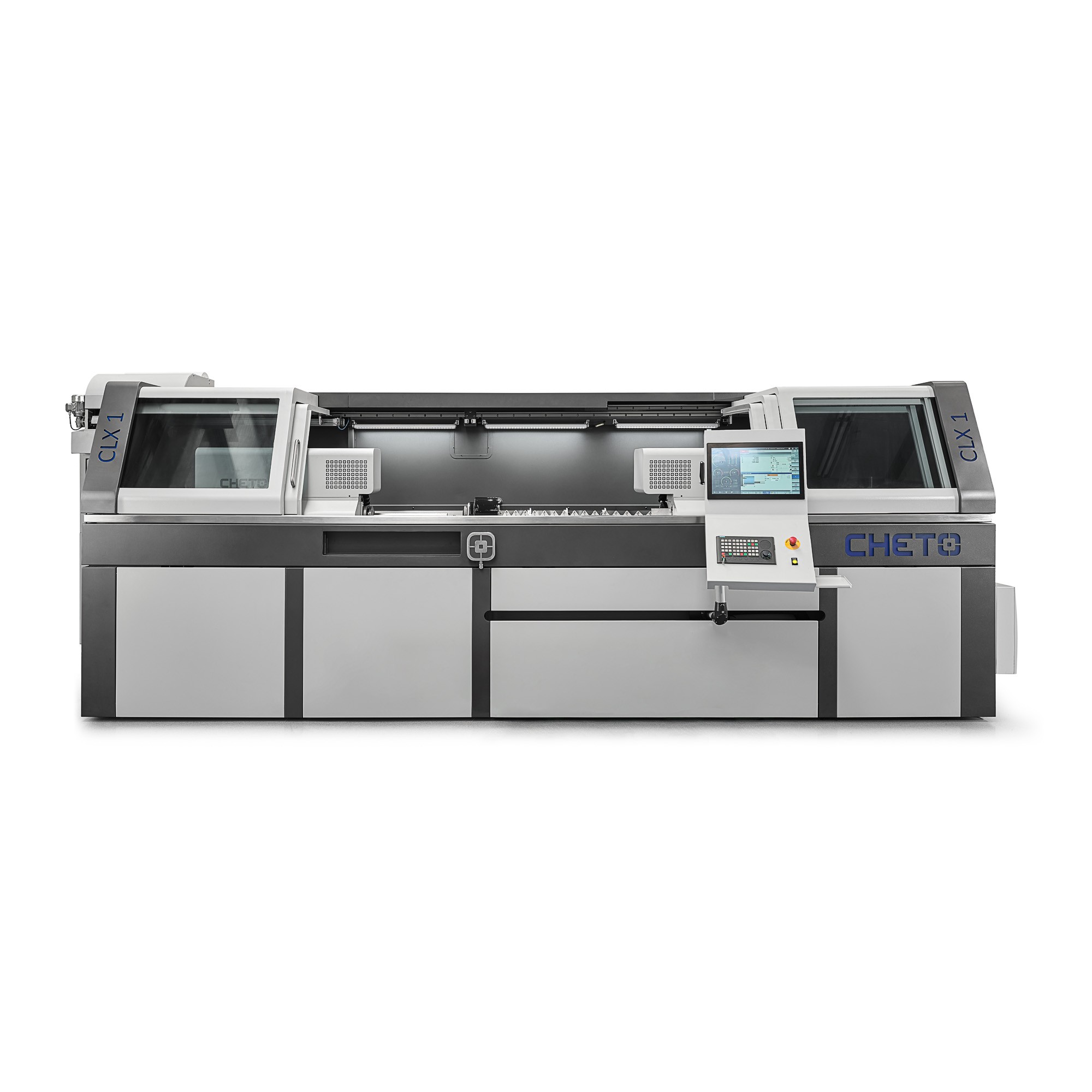

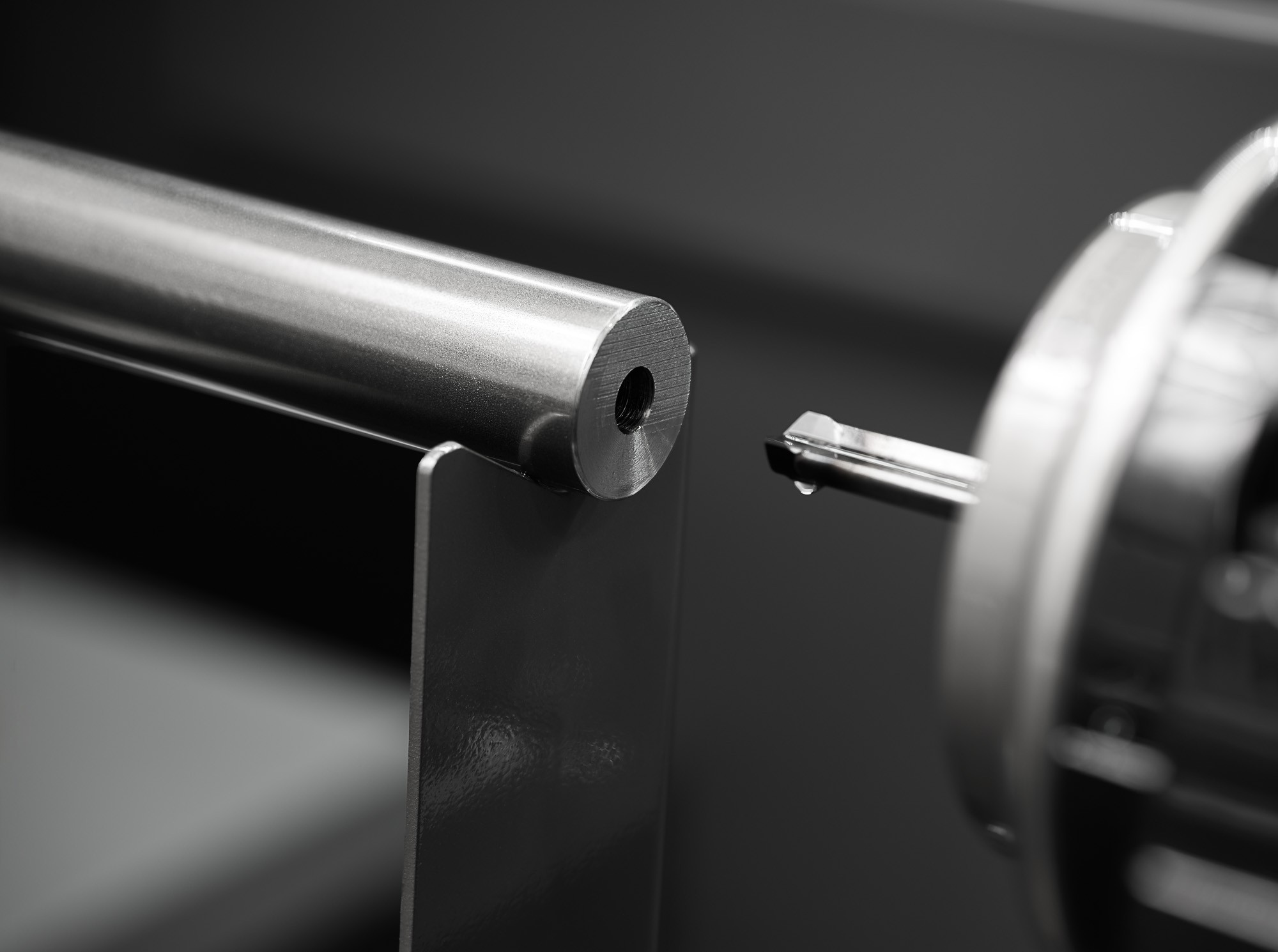

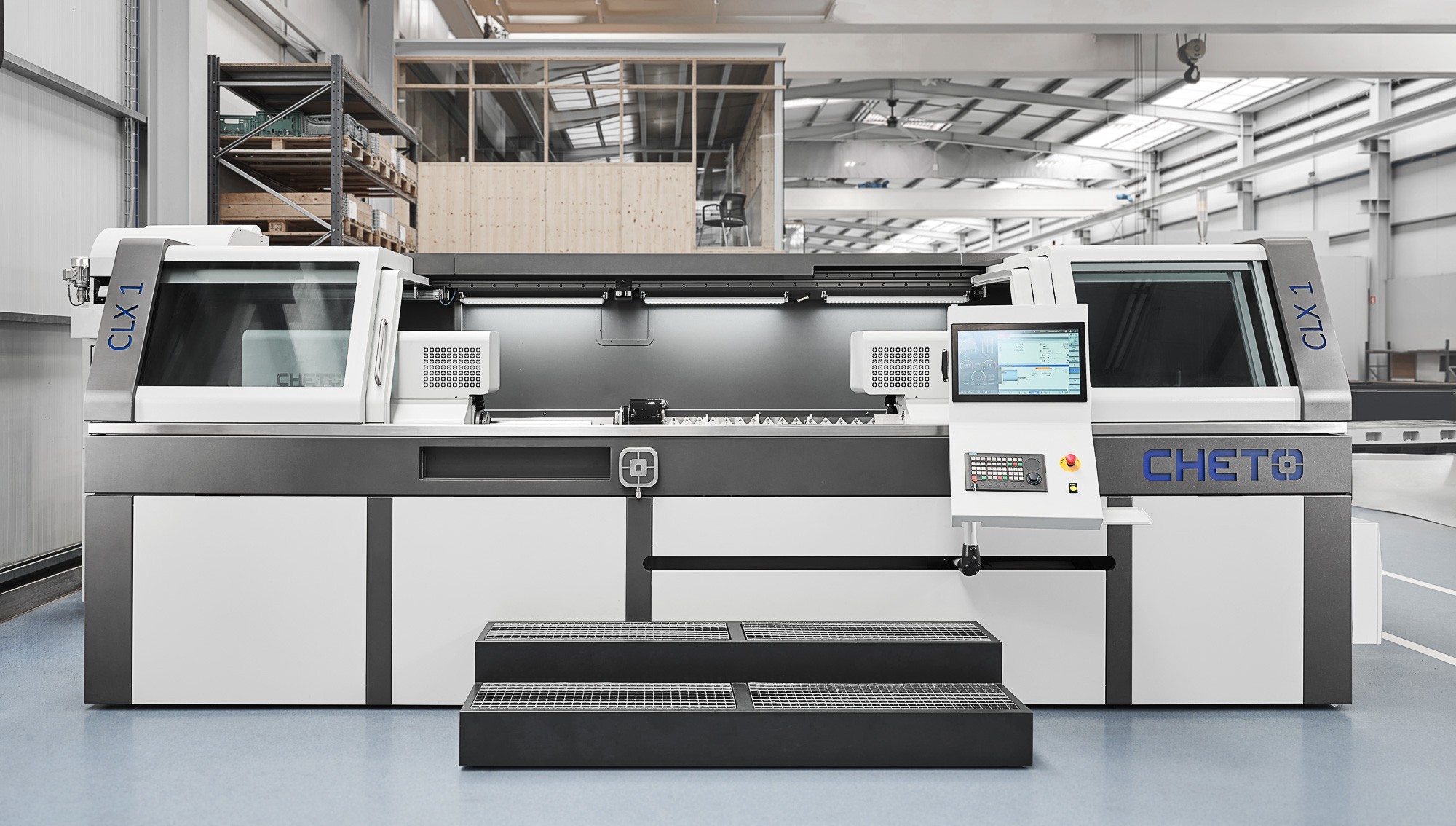

INL

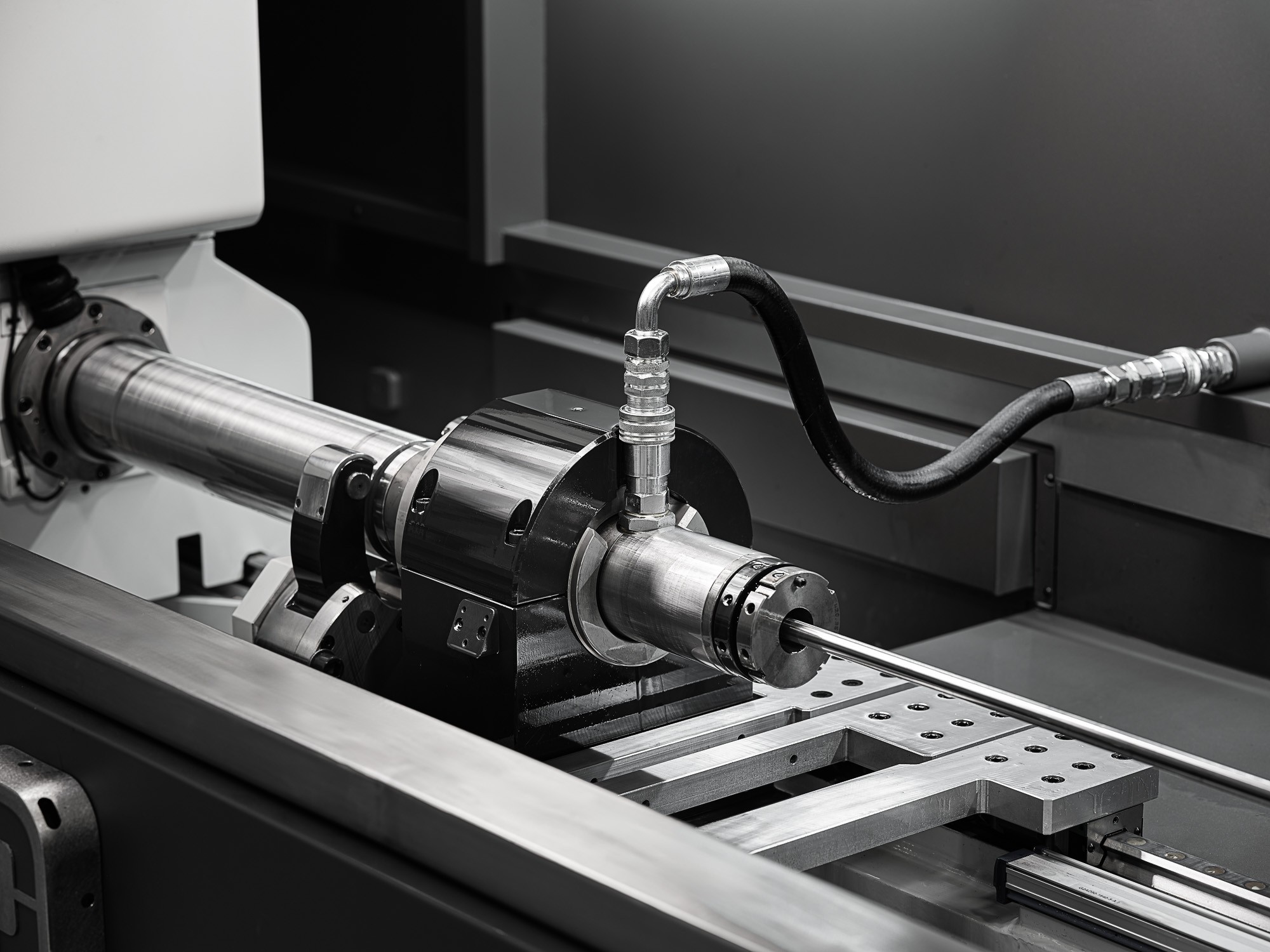

  • BTA

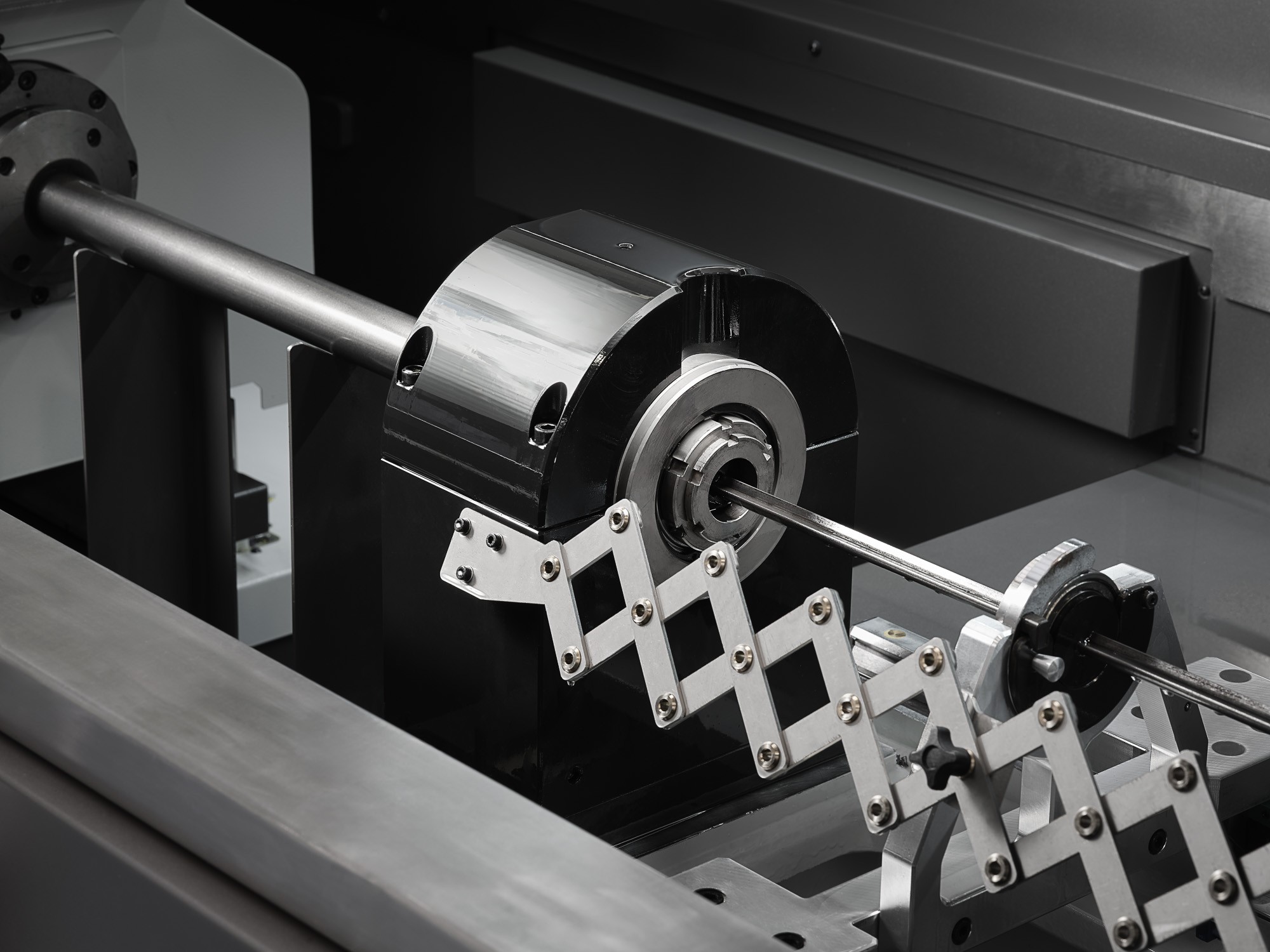

  • GUNDRILL
INL

  • Drilling Unit

  • Number of spindles
  • Depth

  • Control

  • Reference

  • Spindle

  • Power
  • Max. Torque
  • Rapid feed
  • Max. Speed Spindle

  • Coolant System

  • Volume
  • Pump capacity
  • Max. coolant pressure

  • Drilling Capacity

  • Solid drill in steel

  • Layout Dimensions

  • Layout Dimensions
  • BTA
  • 1
  • 150-3000 mm | 5.9-118.1 in
  • BECKHOFF
  • 25 kW / 34 hp
  • 272 Nm / 201 ft-lbs
  • 5000 mm/min
  • 0-2300 rpm
  • 3000 L
  • 160 l/min
  • 50 bar
  • ø18-32 mm | ø0.7-1.3 in
  • Dimensions of the machine according to the depth
  • BTA
  • 1
  • 150-3000 mm | 5.9-118.1 in
  • BECKHOFF
  • 37 kW | 50 hp
  • 330 Nm | 243 ft-lbs
  • 5000 mm/min
  • 0-2300 rpm
  • 4000 L
  • 160-280 l/min
  • 50-30 bar
  • ø18-55 mm | ø0.7-2.2 in
  • Dimensions of the machine according to the depth
  • GUNDRILL
  • 1 to 6
  • 150-3000 mm | 5.9-118.1 in
  • BECKHOFF
  • 8 kW | 11 hp
  • 44 Nm | 32 ft-lbs
  • 5000 mm/min
  • 0-6000 rpm
  • 1500 L
  • 100 l/min
  • 80 bar
  • ø5-25 mm | ø0.2-1.0 in
  • Dimensions of the machine according to the depth

Drilling Unit
  • BTA
  • Number of spindles
  • 1
  • Depth
  • 150-3000 mm | 5.9-118.1 in
  • BTA
  • Number of spindles
  • 1
  • Depth
  • 150-3000 mm | 5.9-118.1 in
  • GUNDRILL
  • Number of spindles
  • 1 to 6
  • Depth
  • 150-3000 mm | 5.9-118.1 in

Control
  • BTA
  • Reference
  • BECKHOFF
  • BTA
  • Reference
  • BECKHOFF
  • GUNDRILL
  • Reference
  • BECKHOFF

Spindle
  • BTA
  • Power
  • 25 kW / 34 hp
  • Max. Torque
  • 272 Nm / 201 ft-lbs
  • Rapid feed
  • 5000 mm/min
  • Max. Speed Spindle
  • 0-2300 rpm
  • BTA
  • Power
  • 37 kW | 50 hp
  • Max. Torque
  • 330 Nm | 243 ft-lbs
  • Rapid feed
  • 5000 mm/min
  • Max. Speed Spindle
  • 0-2300 rpm
  • GUNDRILL
  • Power
  • 8 kW | 11 hp
  • Max. Torque
  • 44 Nm | 32 ft-lbs
  • Rapid feed
  • 5000 mm/min
  • Max. Speed Spindle
  • 0-6000 rpm

Coolant System
  • BTA
  • Volume
  • 3000 L
  • Pump capacity
  • 160 l/min
  • Max. coolant pressure
  • 50 bar
  • BTA
  • Volume
  • 4000 L
  • Pump capacity
  • 160-280 l/min
  • Max. coolant pressure
  • 50-30 bar
  • GUNDRILL
  • Volume
  • 1500 L
  • Pump capacity
  • 100 l/min
  • Max. coolant pressure
  • 80 bar

Drilling Capacity
  • BTA
  • Solid drill in steel
  • ø18-32 mm | ø0.7-1.3 in
  • BTA
  • Solid drill in steel
  • ø18-55 mm | ø0.7-2.2 in
  • GUNDRILL
  • Solid drill in steel
  • ø5-25 mm | ø0.2-1.0 in

Layout Dimensions
  • BTA
  • Layout Dimensions
  • Dimensions of the machine according to the depth
  • BTA
  • Layout Dimensions
  • Dimensions of the machine according to the depth
  • GUNDRILL
  • Layout Dimensions
  • Dimensions of the machine according to the depth
(Subject to modifications without prior notice)

Standard Equipment

  • BTA or GUNDRILL System
  • Temperature of the oil and level of the tank monitoring
  • Automatic Chip Conveyor
  • Coolant tank with automatic filtering
  • Pressure and flow monitoring of drilling fluid
  • Easy determination of workpiece origin
  • Remote diagnosis
  • Clamping cones set
  • NC tailstock
  • Automatic doors

Optional Equipment

  • SIEMENS CONTROL
  • X asis
  • Tailstock
  • Pack Connectivity i4.0
(Subject to modifications without prior notice)
